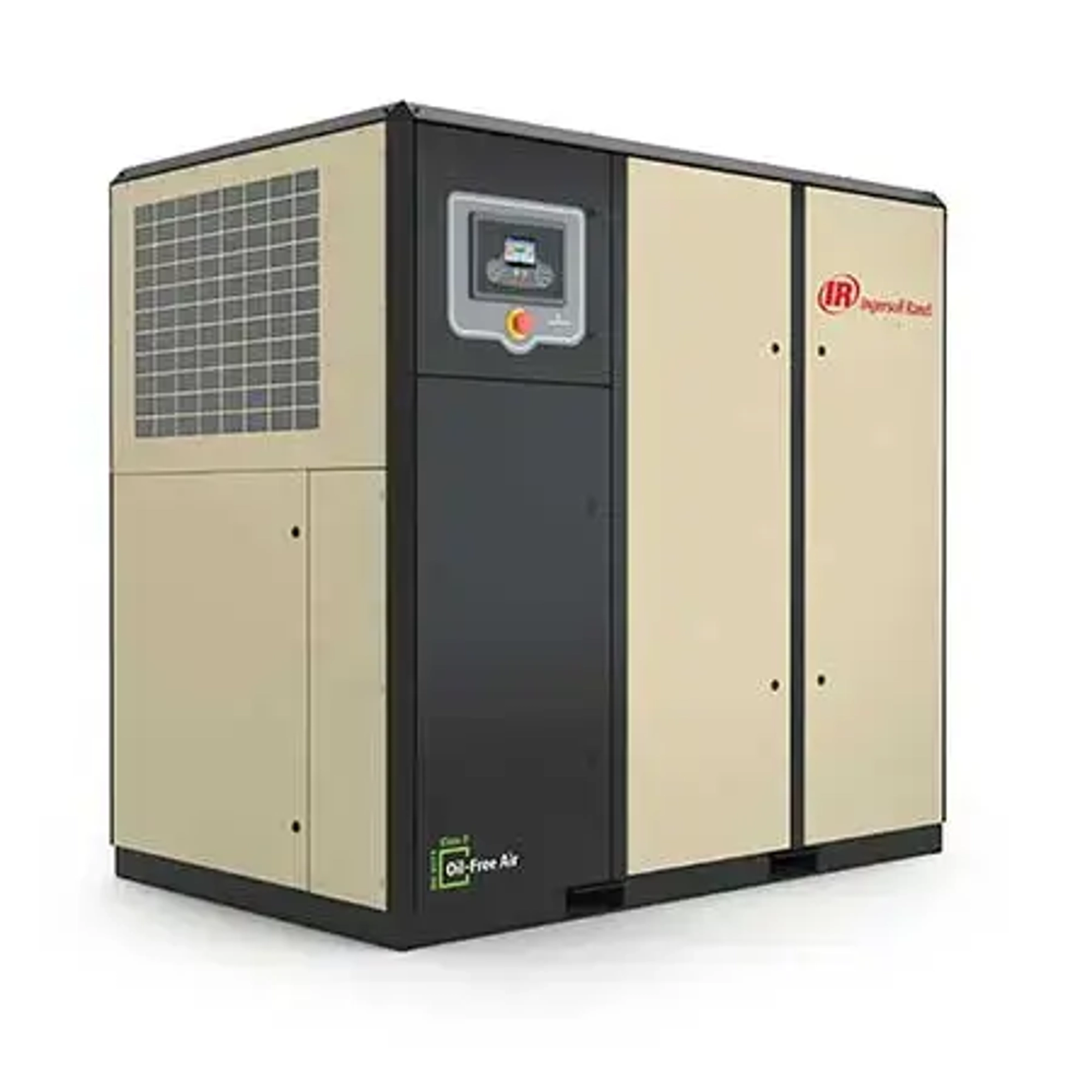

Ingersoll Rand Nirvana VSD Oil-Free Rotary Screw Air Compressors 37-45 kW

The Ingersoll Rand Nirvana is a variable speed oil-free rotary screw air compressor that delivers 100% oil-free compressed air certified to ISO 8573-1 Class 0, for critical applications in food and beverage, pharmaceutical, textile and electronics processes. A variable speed inverter is matched to Ingersoll Rand’s hybrid permanent magnet (HPM) motor, which keeps efficiency high across the speed range, allows wide turndown and virtually unlimited starts and stops. The HPM drive has no motor bearings, pulleys, belts, couplings or motor shaft seals to wear out, leak or need replacing.

The 37 to 45 kW range covers two models: the IRN50H-OF (37 kW) delivering 5.66 m³/min at 7 bar and 5.07 m³/min at 8.5 bar, and the IRN60H-OF (45 kW) delivering 6.71 m³/min at 7 bar and 6.20 m³/min at 8.5 bar. Stainless steel components, dual-vented seals and precision-machined rotors with UltraCoat protection are built for reliability, Ultra Coolant runs up to 8,000 hours between changes, and the compressors are designed for ambient temperatures up to 46 °C. Both models are available air-cooled or water-cooled, are controlled by the Xe-Series controller with a colour display and remote access, and measure 2,080 × 1,120 × 2,070 mm. For larger sites see the Nirvana 55-75 kW. For fixed speed oil-free compressors up to 75 kW, see the Ingersoll Rand Sierra, and pair either with desiccant air dryers.

Harold Engineering supplies, installs and commissions Ingersoll Rand air compressors from our Dublin and Galway bases, with 15 OEM trained field service engineers and a 24 hour breakdown callout service. Contact us to size an oil-free compressor for your site.
