Ingersoll Rand Next Generation R-Series VSD Rotary Screw Compressors 7.5-11 kW

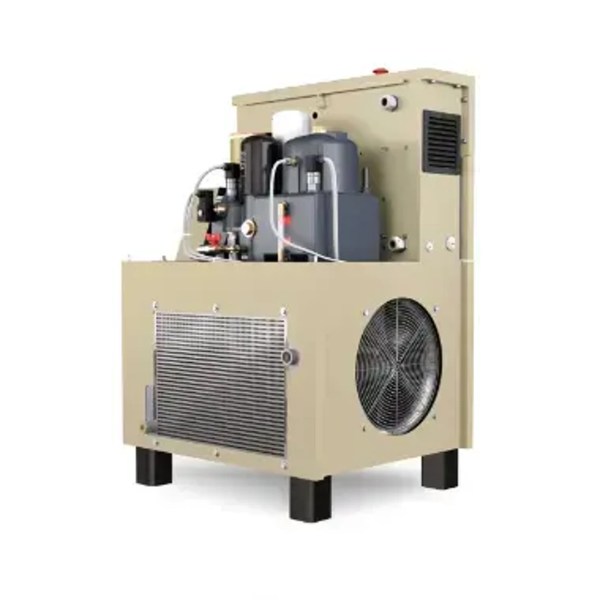

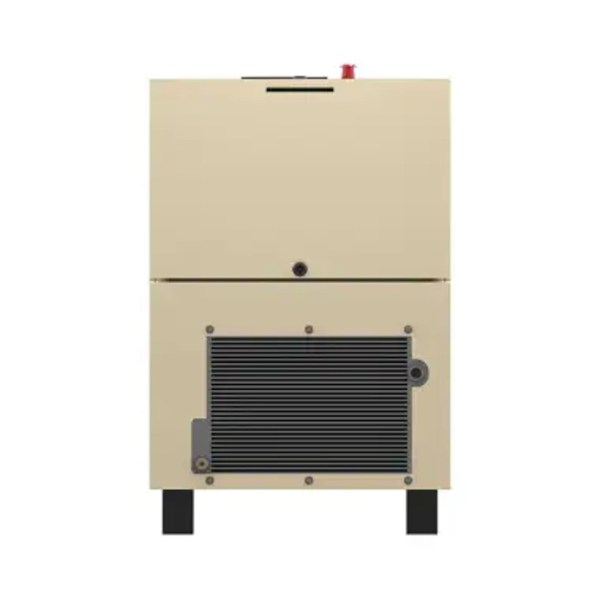

The Ingersoll Rand Next Generation R-Series 7.5 to 11 kW VSD is a range of compact variable speed oil-flooded rotary screw air compressors for garages, workshops and smaller production sites. A fully integrated airend is driven by a premium efficiency IP55 motor through an integrated variable speed drive, which automatically adjusts compressed air output to demand for the highest efficiency at any load.

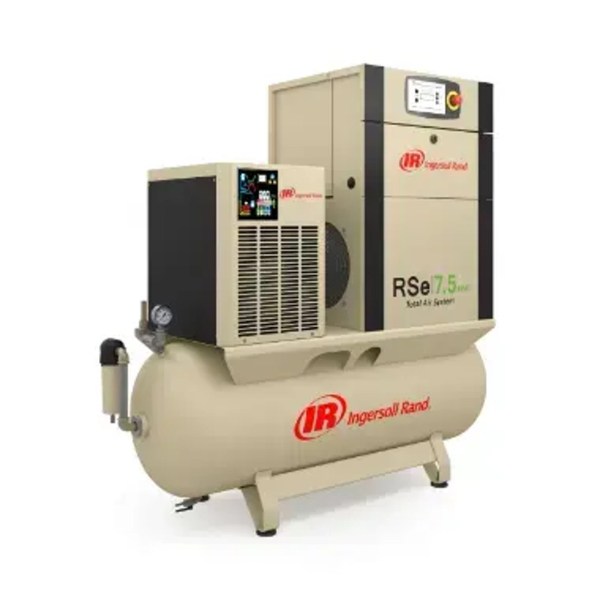

The range covers two tank mounted models, the RSe7.5ne and RSe11ne, rated 7.5 and 11 kW at 7.5 or 10 bar. Free air delivery is 1.27 and 1.81 m³/min at 7.5 bar, and 1.02 and 1.57 m³/min at 10 bar. Tank mounting saves floor space and installation cost, and the Total Air System option combines the compressor with a pre-matched air dryer in a plug and play package. All user-maintainable components are easy to reach, an auto-tensioning V-belt and long-life premium coolant increase uptime, and the Xe-Series controller offers remote access through any modern web browser. Each unit measures 1,541 × 693 × 1,543 mm and weighs 337 to 347 kg. For fixed speed models see the R-Series 7.5-11 kW. For more air see the R-Series VSD 15-22 kW, and for lighter duty our aluminium reciprocating compressors.

Harold Engineering supplies, installs and commissions Ingersoll Rand air compressors from our Dublin and Galway bases, with 15 OEM trained field service engineers and a 24 hour breakdown callout service. Contact us to size a compressor for your site.
